Introduction
To update the software on Nextivity’s High Power User Equipment (HPUE) device, you will be using the Nextivity cloud, MegaPortal, which is found at https://mega.nextivityinc.com.
Before updating your HPUE device, you will need to register your device in your MegaPortal cloud account. If you do not have an account, please see the instructions below on how to create an account. If you already have an account but have not registered your device, please see instructions on how to add your device to your account below.
Provided you have a MegaPortal account and have added your device to your account, please see below, for updating the software on your Nextivity HPUE device.
HPUE Devices

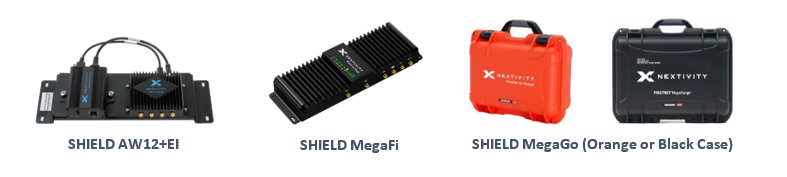

These instructions apply to the following HPUE devices and are the same for each of these devices. Below are images to help identify your device.
MegaPortal Cloud Account
1) To enable cloud management, open your computer browser window and enter https://mega.nextivityinc.com.
2) The MegaPortal sign-in dialog box will appear.
If your organization already has an account, contact your organization’s administrator to create a user account.
If your organization doesn't have an account yet, you can contact support@nextivityinc.com to create an administrative account for your organization. Click on Create an account.
Sign In to MegaPortal
1) Once you have a user account on MegaPortal, open your computer browser window and enter https://mega.nextivityinc.com.

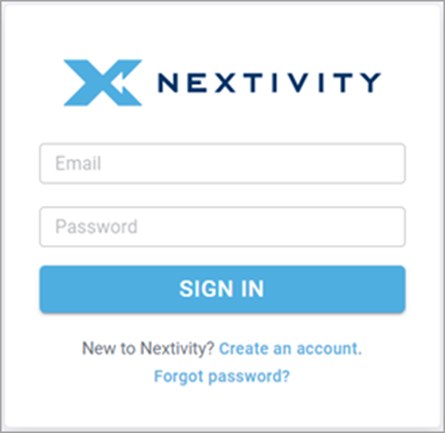

2) The MegaPortal sign-in dialog box will appear.
Enter the email and the password for your account and click SIGN IN. If your account has MFA enabled, enter the MFA code sent to you to complete the login process.
Add Devices

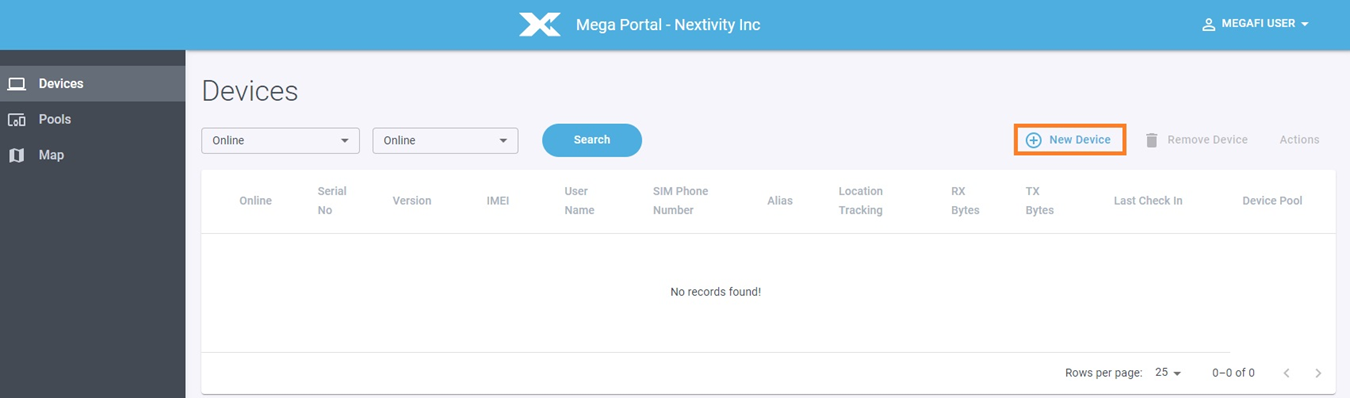

1. From the Devices menu, click on New Device on the upper right-hand side of the screen.

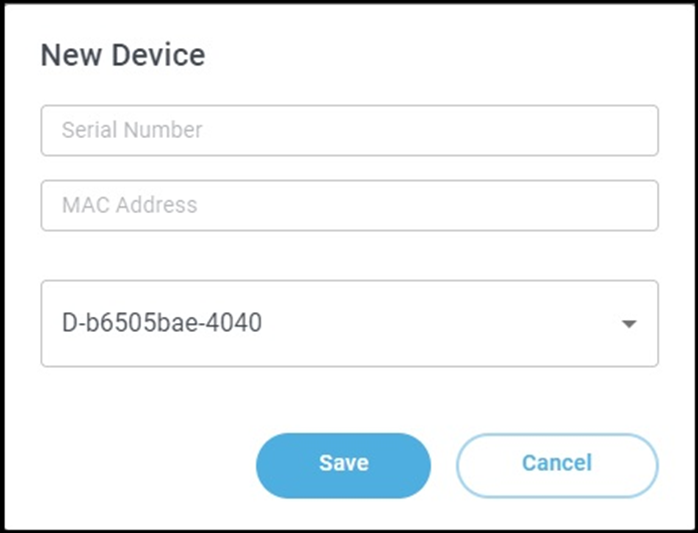

2. In the New Device dialog box, enter the following information.
-
- Serial Number
- MAC address - (no special characters required) from the label on the bottom of the HPUE device or label included in the box packaging.
- Pool – For a new account, there will be no pools defined, only the default pool (default pool named D-b6505bae-4040 in the example below). Choose the default pool or choose the desired pool from the drop-down menu if one already exists. Devices can be transferred to another pool at a later time.
- SAVE – to save the new device to the pool selected.
Edit Device Alias and Device Description

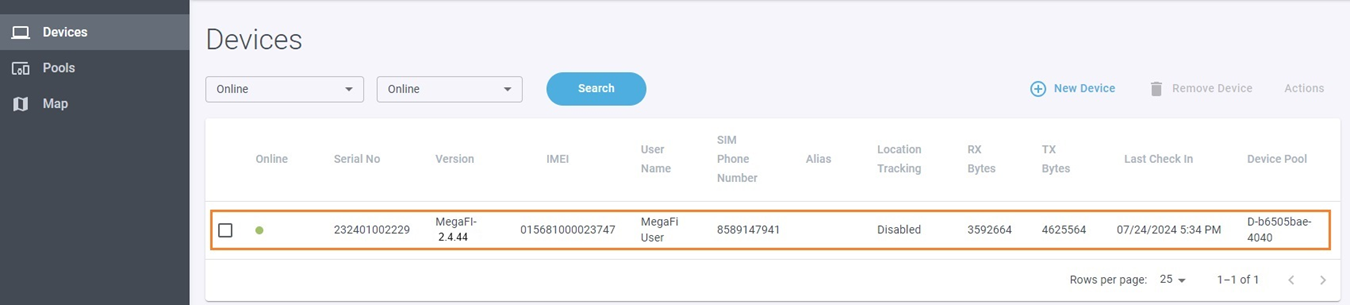

1. From the Devices menu, select the device to edit its’ alias and description. Click anywhere in the highlighted field as shown below.

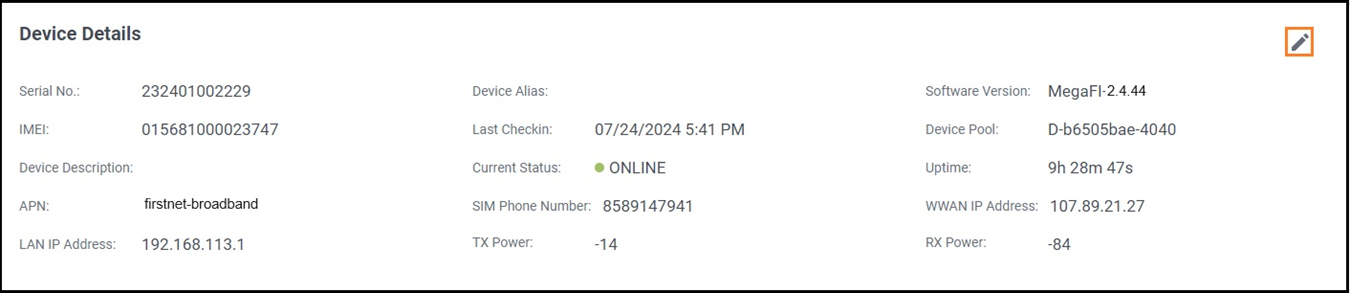

2. In Device Details, select the pencil icon to edit the device.

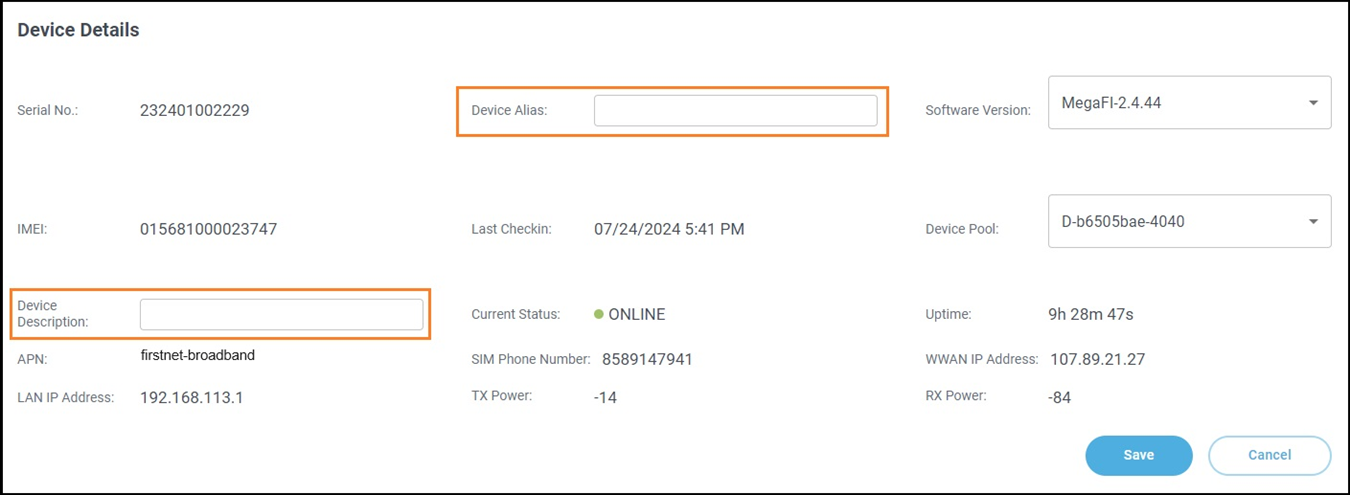

3. Enter a Device Alias and a Device Description in the designated fields.
4. Click on SAVE to commit the edits.
HPUE Software Update

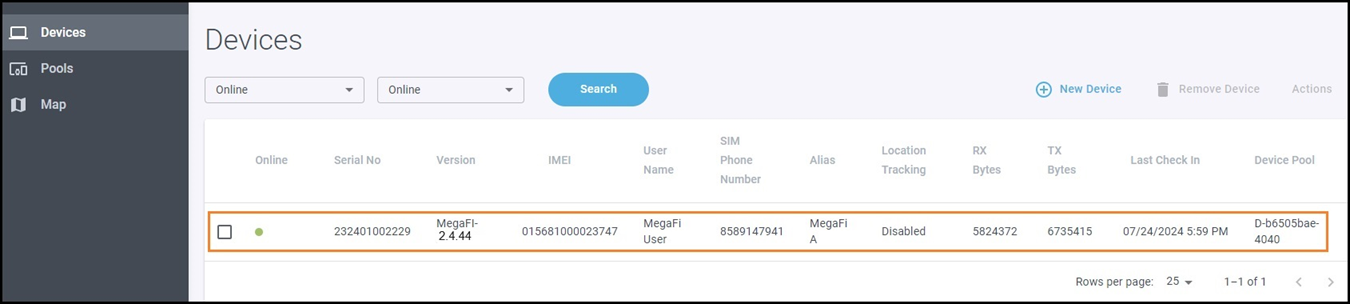

1. From the Devices menu, select the device you wish to update its software version by clicking anywhere in the area as shown below.

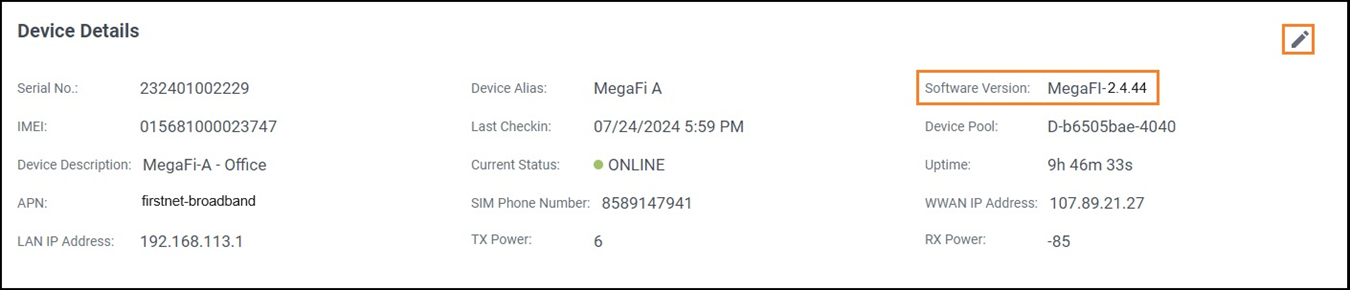

2. In Device Details, select the pencil icon to update this device’s software version.

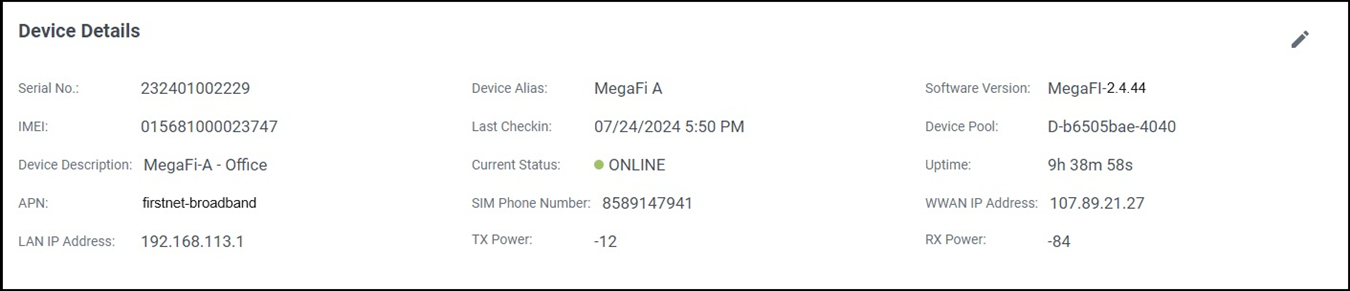

In this example, the device is currently on software version 2.4.44 and will be updated to version 2.5.0.
Note: The required software version number is 2.5.0, and the name of the software file will be prepended by MegaFi or EI for an AW12+EI, depending upon the device registered in the cloud. For example, if you are updating a MegaFi device, the software version name will be MegaFi-2.5.0. If you are updating an AW12+EI device, the software version name will be EI-2.5.0. MegaPortal will only offer the appropriate software for your HPUE device in the drop-down menu selection.

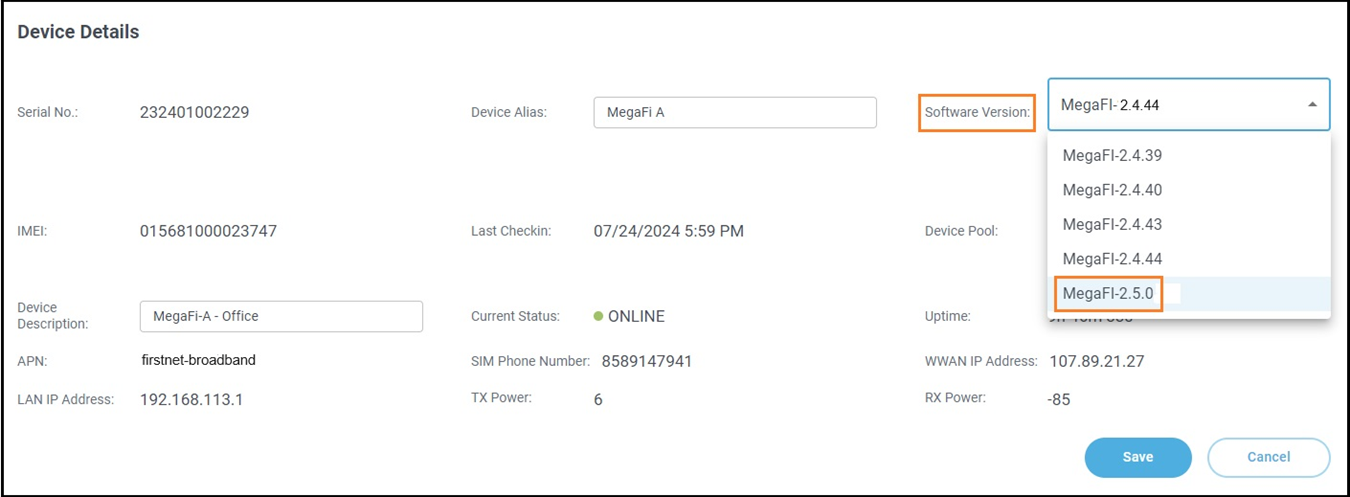

3. Via the Software Version drop-down menu, select the desired software version. In this example, we will choose software version 2.5.0 for a MegaFi device.

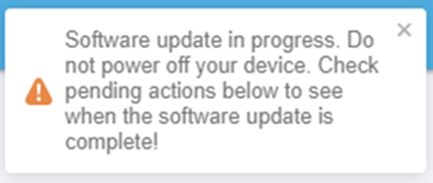

4. Once you have selected the appropriate software version, click on Save. A pop-up at the top right corner will appear.
Note: The update process takes between 5-15 minutes to complete, sometimes more depending on your device’s internet connection.
Important: Do not power off your device while the device is updating its software. Doing so may damage the device.
Note: AW12+EI devices on an older software prior to version 2.3.58 will take 24 hours to check into the cloud after a bootup. Therefore, initiating an update to these devices will take that much longer to complete the update process.

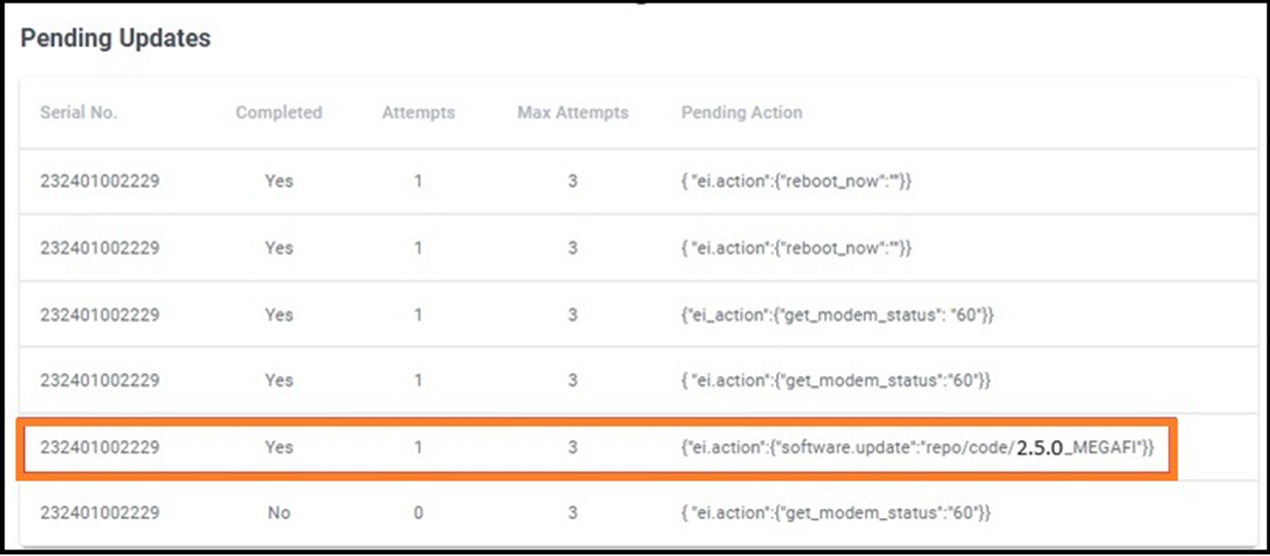

5. On the Device Details page, scroll down to check Pending Actions, and until there is a Yes under the Completed column for the software version 2.5.0 Pending Action as shown below, the software update has been completed.

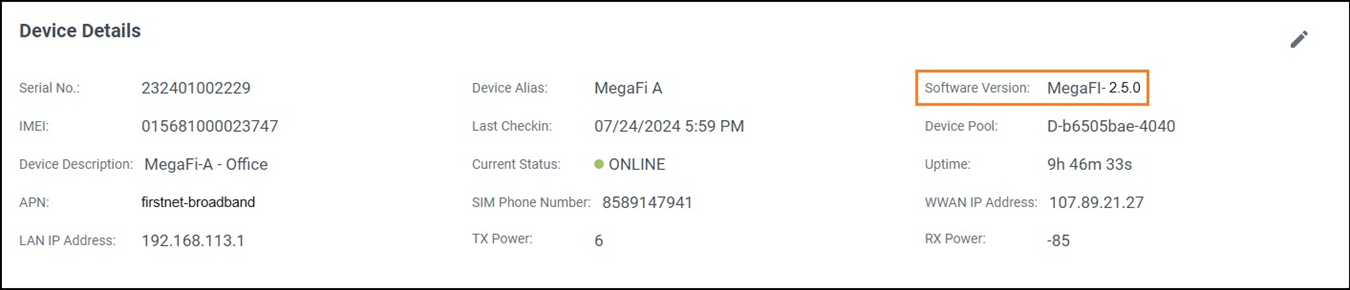

6. You can also confirm the software version in Device Details.

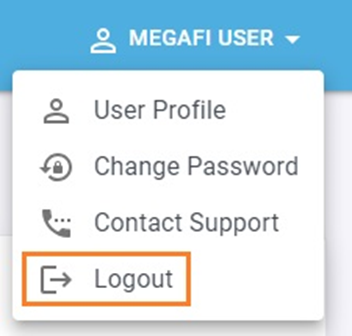

7. You can now update additional devices by repeating the steps above. When complete, log out of your account by closing your browser or selecting your user profile in the screen's upper right-hand corner and selecting Logout.
Support
If you have issues, questions or concerns related to MegaPortal, users can contact support by emailing support@nextivityinc.com or calling 858.485.9442, Option 1.
Support Business Hours: 6:00 AM – 5:00 PM PST
If you need more information on your device, SHIELD AW12+EI, SHIELD MegaFi, or SHIELD MegaGO, please visit the Nextivity Support page at https://nextivityinc.com/support.
