Step 5: Update the Software on the Cel-Fi

Run Nextivity Redhawk on the PC: Start->All Programs->Redhawk->Nextivity Redhawk:

Enter the following credentials:

Username: epluso2update
Password: neukonfig

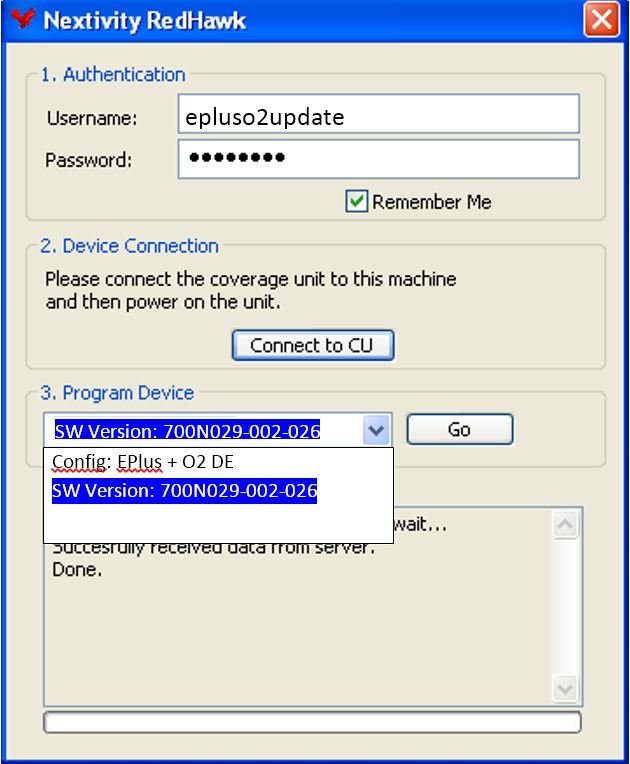

Then press the ‘Connect to CU’ button. You should be presented with these options:

Select the option ‘SW Version: 700N029-002-026’ and press the ‘Go’ button.

The configuration update takes up to 5 minutes; after that the WU will reset and when it comes back up:

• The coverage bars on the WU should be illuminated to indicate the 3G coverage for the selected network operator.
• The CU should display a number (or E1 if there is no 3G coverage at the WU).

Go Back to Step 4 | Continue to Step 6
